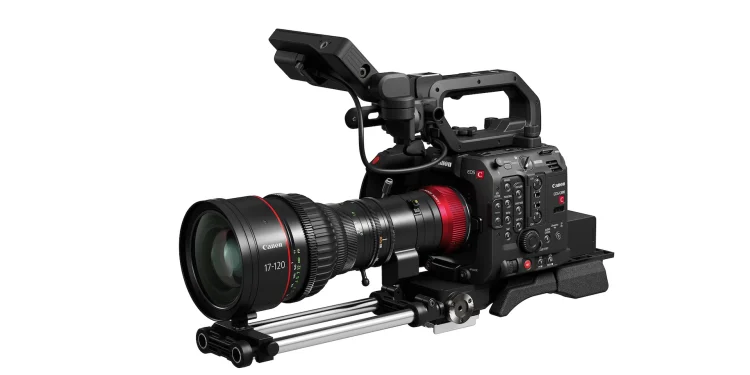

Canon EOS C400: Specs, Dynamic Range, Rolling Shutter and Video Features

Canon EOS C400 is a full-frame Cinema EOS camera built for professional filmmakers, documentary crews, commercial teams and broadcast-style video production.

Released in June 2024, the Canon EOS C400 introduced a 6K full-frame back-illuminated CMOS sensor, Canon RF mount, triple base ISO, Cinema RAW Light, XF-AVC, XF-HEVC S, built-in ND filters, 12G-SDI, Ethernet and Dual Pixel CMOS AF II into a compact cinema body.

The camera sits above the EOS C80 and EOS C50 in Canon’s compact Cinema EOS range. It is more production-focused than hybrid mirrorless cameras such as the EOS R5 Mark II or EOS R6 Mark III, but smaller and more flexible than larger cinema systems.

The EOS C400 records full-frame 6K, 4K DCI, 4K UHD, 2K and HD. It also supports Super 35 and Super 16 crop modes, making it useful for many lens workflows. Its triple base ISO system gives it more flexibility in changing light, while built-in ND filters make it practical for documentary and outdoor production.

Its biggest strengths are professional connectivity, Canon colour, autofocus, 6K RAW, triple base ISO, internal ND filters and strong rolling-shutter performance. Its main trade-off is that lab dynamic-range results are stronger in 4K XF-AVC than in 6K RAW.

Key Camera Specifications

The Canon EOS C400 is designed for creators who need a proper cinema camera body, not just a mirrorless camera with strong video modes.

Full-Frame 6K Sensor

The Canon EOS C400 uses a full-frame 36 x 24mm sensor.

In full-frame 3:2 mode, the camera records up to 6000 x 4000. In full-frame 17:9 mode, it records up to 6000 x 3164. This gives filmmakers a high-resolution source for 6K capture, 4K delivery, reframing, stabilisation and multi-format production.

The sensor is back-illuminated, which helps improve readout and low-light performance compared with older sensor designs.

Why the 6K Sensor Matters

A 6K sensor gives editors more flexibility than a native 4K sensor.

Footage can be downsampled to detailed 4K, cropped for different aspect ratios or stabilised in post-production. This is useful for commercials, documentaries, interviews, music videos, live events and branded content.

The 6K sensor also supports full-frame, Super 35 and Super 16 recording workflows, giving crews more lens and framing options.

Full-Frame 3:2 Recording

The Canon EOS C400 supports full-frame 3:2 6K recording at 6000 x 4000.

This taller sensor mode is useful when creators want extra vertical framing. It can help with vertical content, social media cropping, anamorphic-style workflows and post-production reframing.

The 3:2 mode makes the camera more flexible for creators delivering to both widescreen and vertical platforms.

Cinema RAW Light Recording

The EOS C400 records 12-bit Cinema RAW Light internally.

Cinema RAW Light gives filmmakers more post-production flexibility than standard compressed codecs. It allows stronger control over colour, exposure and white balance in post-production.

The provided recording data lists full-frame 3:2 6K RAW options in Canon RAW HQ, Canon RAW ST and Canon RAW LT.

Canon RAW HQ gives the highest quality and largest files. Canon RAW ST balances quality and file size. Canon RAW LT is more storage-friendly.

XF-AVC and XF-HEVC Workflows

The Canon EOS C400 also supports XF-AVC, XF-AVC S and XF-HEVC S.

These codecs are useful when RAW is too heavy for the project. XF-AVC is a strong professional format for editing and grading. XF-HEVC S gives efficient compression for high-resolution and long-form work.

RAW vs XF-AVC

Cinema RAW Light is best when maximum grading control matters.

XF-AVC is better for documentaries, interviews, events, corporate videos, broadcast-style work and fast client delivery. It also delivers the strongest measured dynamic-range result in the provided lab data.

Many production teams will use RAW for premium scenes and XF-AVC for everyday professional work.

Dynamic Range Performance

The provided lab data lists a maximum dynamic range of 13 stops at SNR=2 in full-frame 4096 x 2160 XF-AVC at ISO 800 and Canon Log 2.

The camera measures 12.9 stops at SNR=2 in full-frame 4K XF-AVC at 60fps and 120fps. In 6K Canon RAW, the measured result is lower, reaching 10.5 stops at SNR=2 at ISO 800 in 25fps and 10.6 stops at SNR=2 at ISO 800 in 60fps.

The key lesson is that 4K XF-AVC gives the best measured SNR=2 dynamic-range result, while 6K RAW gives more post-production control but lower measured lab numbers.

What Dynamic Range Means for Filmmakers

Dynamic range affects how much highlight and shadow detail a camera can hold.

This matters when filming bright skies, windows, practical lights, stage lighting, night streets, reflective surfaces and backlit interviews. The EOS C400 performs best at ISO 800 in Canon Log 2, especially in 4K XF-AVC.

For the cleanest result, expose carefully, protect highlights and avoid heavy underexposure.

Triple Base ISO

The Canon EOS C400 has triple base ISO settings of 800, 3200 and 12800.

Triple base ISO is one of the camera’s headline features. It gives the camera different sensitivity points for different lighting conditions. ISO 800 is best for normal lighting and maximum quality. ISO 3200 helps in dim interiors. ISO 12800 is useful for very low-light scenes.

However, the provided lab data shows that dynamic range drops as ISO increases.

ISO 800 remains the strongest setting for maximum image quality. ISO 3200 and ISO 12800 are valuable when available light is limited.

Rolling Shutter Performance

The Canon EOS C400 has strong rolling-shutter performance for a full-frame cinema camera.

In the provided lab data, full-frame 4K XF-AVC at 25fps and 60fps measures 9.5ms. Full-frame 6K Canon RAW at 25fps and 60fps also measures 9.5ms. Full-frame 4K120 improves to 7.4ms.

In Super 35 crop modes, rolling shutter improves further to 6.9ms in 4K and 5.5ms in 4K120.

The EOS C400 is much better for fast movement than many slower full-frame cinema cameras.

Why Rolling Shutter Matters

Rolling shutter can make fast motion look distorted.

Fast pans may bend vertical lines, and quick-moving subjects can appear skewed. The EOS C400’s readout figures make it suitable for handheld work, documentaries, sports-style shots, gimbal movement and commercial action.

For the fastest movement, Super 35 crop modes and 4K120 are the strongest choices.

Recording Formats

The Canon EOS C400 supports full-frame, Super 35 and Super 16 recording formats.

This makes the EOS C400 flexible for full-frame cinema lenses, Super 35 glass, crop workflows and productions that need multiple delivery formats.

4K120 and Slow Motion

The Canon EOS C400 supports 4K recording up to 120fps.

The provided lab data shows 4K120 performs well for both dynamic range and rolling shutter, with 12.9 stops at SNR=2 at ISO 800 and 7.4ms full-frame rolling shutter. In Super 35 crop, 4K120 improves to 5.5ms rolling shutter.

Why 4K120 Matters

4K120 gives filmmakers smooth slow motion while keeping a high-resolution image.

It is useful for commercials, music videos, action shots, sports-style footage, product reveals, fashion films and cinematic B-roll. The faster readout also makes it a good choice for movement-heavy scenes.

For a professional cinema camera, strong 4K120 performance is a major creative advantage.

Built-In ND Filters

The EOS C400 includes built-in ND filters.

Built-in ND filters are essential for professional video because they control exposure without changing shutter angle, aperture or ISO. This lets filmmakers keep natural motion blur and the desired depth of field in bright environments.

Why ND Filters Matter

ND filters make production faster and cleaner.

Instead of adding external filters every time light changes, operators can adjust ND inside the camera. This is vital for documentaries, outdoor commercials, interviews, events and run-and-gun production.

Built-in ND is one of the biggest reasons to choose the EOS C400 over hybrid mirrorless bodies.

RF Lens Mount

The Canon EOS C400 uses the RF mount.

RF mount gives filmmakers access to Canon’s modern mirrorless lenses, including L-series zooms, fast primes, stabilised lenses, hybrid video lenses and compact primes. The camera also supports EF and PL workflows through adapters.

The RF mount makes the C400 flexible for solo creators and professional crews.

Dual Pixel CMOS AF II

The Canon EOS C400 supports Dual Pixel CMOS AF II.

This gives the camera strong autofocus for interviews, documentary work, gimbal shots, corporate videos, events and solo production. Canon’s subject detection can help track people and other subjects, depending on mode and settings.

Why Autofocus Matters

Modern cinema cameras are often used by small crews.

Reliable autofocus helps when there is no focus puller. It is especially useful for interviews, walking shots, gimbal work, documentary scenes and unpredictable subjects.

Manual focus remains important for controlled cinema work, but autofocus gives the C400 more flexibility.

Professional Audio

The Canon EOS C400 includes professional audio options.

It supports mini XLR inputs, microphone input, headphone monitoring and production-level audio control. This makes it more useful than mirrorless bodies that require external adapters for serious sound.

Why Professional Audio Matters

Good audio is essential for professional video.

XLR inputs allow crews to connect professional microphones, wireless receivers and mixers. This helps with interviews, documentaries, corporate shoots, events and broadcast-style production.

For small crews, built-in audio tools reduce rigging and simplify workflow.

SDI, Ethernet and Production Connectivity

The Canon EOS C400 includes 12G-SDI, HDMI, Ethernet and professional control connections.

These features make it suitable for studio, live production, multi-camera work and on-set monitoring. SDI is especially important because it is more secure than HDMI for professional monitoring.

Why Production I/O Matters

Professional sets need reliable connections.

SDI handles longer cable runs and locks more securely. Ethernet supports network workflows, remote operation and live production environments. These features help the EOS C400 fit into serious production pipelines.

This is one of the key differences between the C400 and a standard hybrid mirrorless camera.

Media and Storage

The Canon EOS C400 uses CFexpress and SD recording workflows.

High-bitrate RAW requires fast media. Lighter codecs and proxy workflows can use lower-demand storage depending on settings.

Media Planning Tips

Use fast CFexpress cards for 6K RAW and high-data-rate workflows.

Use SD cards for lighter formats, proxies or secondary recording where supported. For paid work, test every card before production and build a proper backup plan.

A 6K RAW workflow can create large files quickly, so data management is part of the camera system.

Body Design and Ergonomics

The EOS C400 uses a compact box-style Cinema EOS body.

At about 1.55 kg, it is heavier than small mirrorless cameras but still compact enough for handheld rigs, gimbals, tripods, shoulder setups and production cages. The body is modular, allowing crews to build it up or strip it down depending on the job.

Why the Body Works

The C400 body is designed for flexible production.

It can be used as a main camera on commercial shoots, a documentary camera, a studio camera or a B-camera to larger Canon cinema systems. The box-style design also works well for rigging.

This makes the EOS C400 more adaptable than many fixed-form cinema bodies.

Best Uses for the Canon EOS C400

The Canon EOS C400 is best for productions that need full-frame cinema quality, professional connections and flexible recording formats.

It is ideal for:

Documentaries
Commercials
Corporate films
Music videos
Broadcast production
Live production
Interviews
Studio work
Virtual production
Short films
Independent films
Event coverage
Gimbal work
Multi-camera production
B-camera use with larger Canon cinema cameras

The camera is strongest when users need professional features in a compact full-frame body.

Canon EOS C400 vs Canon EOS C80

The EOS C400 is the higher-end camera, while the EOS C80 brings many similar ideas into a smaller and cheaper body.

The C80 is better for smaller crews and lower budgets. The C400 is better for productions that need stronger I/O, modularity and higher-end cinema handling.

Canon EOS C400 vs Canon EOS C50

The EOS C50 is smaller and cheaper, while the C400 is more production-focused.

The C50 is better for lightweight creators who want Open Gate and portability. The C400 is better for professional crews that need built-in ND filters, stronger connections and a production-ready body.

Canon EOS C400 vs Canon EOS R5 Mark II

The EOS R5 Mark II is a hybrid stills/video camera, while the EOS C400 is a dedicated cinema camera.

The R5 Mark II is better for hybrid creators. The EOS C400 is better for dedicated video production.

Canon EOS C400 vs Canon EOS C300 Mark III

The EOS C400 can be seen as a modern full-frame step for users coming from the C300 line.

The C300 Mark III remains strong, but the C400 offers a newer full-frame RF-mount workflow.

Key Takeaways

• Canon EOS C400 was released in June 2024.
• It uses a 36 x 24mm full-frame sensor.
• The camera records 6K 3:2 at 6000 x 4000.
• It also records 6K 17:9 at 6000 x 3164.
• The Canon RF mount is used.
• EF and PL workflows are possible through adapters.
• Triple base ISO settings are 800, 3200 and 12800.
• The provided lab data lists 13 stops at SNR=2 in full-frame 4K XF-AVC at ISO 800.
• Full-frame 4K120 lists 12.9 stops at SNR=2 at ISO 800.
• 6K Canon RAW lists about 10.5 to 10.6 stops at SNR=2 at ISO 800.
• Full-frame rolling shutter is listed at 9.5ms in 6K and 4K modes.
• Full-frame 4K120 improves to 7.4ms.
• Super 35 4K120 improves to 5.5ms.
• Cinema RAW Light, XF-AVC and XF-HEVC workflows are supported.
• Built-in ND filters are included.
• Dual Pixel CMOS AF II is supported.
• SDI, Ethernet and professional audio make it production-ready.
• It is best for documentaries, commercials, broadcast work, studio production and serious video crews.

Frequently Asked Questions

What is the Canon EOS C400?

Canon EOS C400 is a full-frame Cinema EOS camera with 6K RAW recording, triple base ISO, RF mount, built-in ND filters, Dual Pixel CMOS AF II and professional video connections.

When was the Canon EOS C400 released?

The Canon EOS C400 was released in June 2024.

What sensor does the Canon EOS C400 use?

It uses a 36 x 24mm full-frame back-illuminated CMOS sensor.

What is the maximum recording resolution?

The maximum listed recording format is 6000 x 4000 in full-frame 3:2 6K mode.

What lens mount does it use?

The EOS C400 uses the Canon RF mount. EF and PL workflows are possible through adapters.

Does the Canon EOS C400 record RAW?

Yes. The camera records 12-bit Cinema RAW Light internally.

What is triple base ISO?

Triple base ISO gives the camera three base sensitivity settings: ISO 800, ISO 3200 and ISO 12800. These help the camera work across different lighting conditions.

What dynamic range did the provided lab data show?

The provided lab data lists a maximum of 13 stops at SNR=2 in full-frame 4096 x 2160 XF-AVC at ISO 800 and Canon Log 2.

What is the rolling-shutter result?

The provided lab data lists 9.5ms in full-frame 6K and 4K modes, 7.4ms in full-frame 4K120 and 5.5ms in Super 35 4K120.

Does the Canon EOS C400 have built-in ND filters?

Yes. The EOS C400 includes built-in ND filters for professional exposure control.

Is the Canon EOS C400 good for documentaries?

Yes. Its full-frame 6K sensor, built-in ND filters, triple base ISO, autofocus, professional audio and compact body make it strong for documentary production.

Who should buy the Canon EOS C400?

The Canon EOS C400 is best for filmmakers, documentary crews, commercial producers, studio teams and broadcast users who need a compact full-frame cinema camera with professional production tools.

Conclusion

Canon EOS C400 is a serious full-frame Cinema EOS camera designed for professional video production.

Its 36 x 24mm 6K sensor, RF mount, Cinema RAW Light, XF-AVC, XF-HEVC, triple base ISO, built-in ND filters, Dual Pixel CMOS AF II, SDI, Ethernet and professional audio make it a strong tool for documentaries, commercials, broadcast work, studio production and small cinema crews.

The lab data shows that the camera performs best for dynamic range in 4K XF-AVC at ISO 800, reaching 13 stops at SNR=2. Its 6K RAW modes give more grading flexibility but lower measured SNR=2 results. Rolling shutter is strong, with 9.5ms full-frame readout and faster results in 4K120 and Super 35 crop modes.

The EOS C400 is not the cheapest compact cinema camera, and some users may prefer the smaller EOS C80 or EOS C50. However, for creators who need a more complete production body with full-frame 6K capture, built-in ND filters, professional I/O and Canon’s RF ecosystem, the Canon EOS C400 is one of the strongest Cinema EOS cameras in its class.
