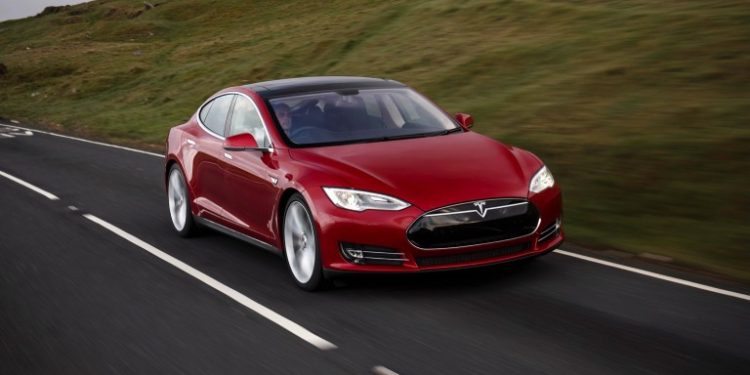

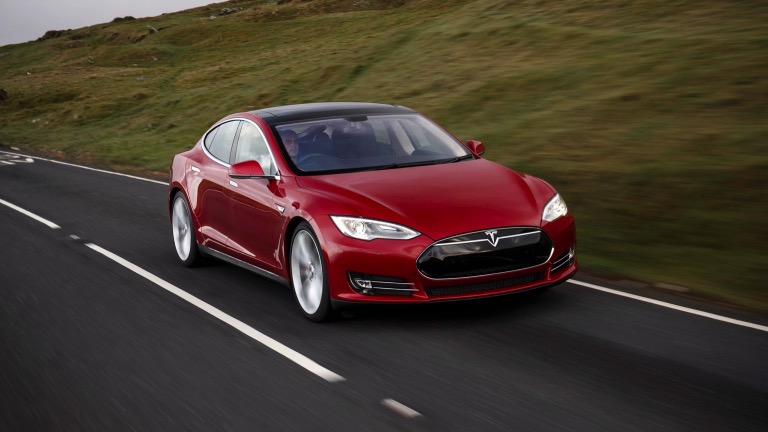

The Tesla Model S P90D specs represent a key milestone in early high-performance electric sedans. Produced between July 2015 and April 2016, this luxury EV featured a robust 85.5 kWh usable battery, 415 km of real-world range, and Tesla’s trademark “Ludicrous Mode” acceleration from 0 to 100 km/h in just 3.3 seconds.
Despite being discontinued, the Model S P90D still impresses with its AWD drivetrain, 967 Nm of torque, and support for Tesla’s Supercharger network delivering up to 120 kW DC charging power. Its long-range capacity and quick recharge times made it a viable option for high-speed touring and executive commuting alike.
Tesla Model S P90D Full Specifications
| Category | Specification |
|---|---|
| Model Availability | July 2015 – April 2016 |
| Drive | All-Wheel Drive (AWD) |
| Battery Capacity (Nominal / Usable) | 90.0 kWh / 85.5 kWh |
| Architecture | 400 V |
| Real-World Range (EVDB) | 415 km |
| Range Estimate | 300 – 585 km |
| NEDC Rated Range | 505 km |
| Efficiency (Real) | 206 Wh/km |
| Acceleration (0–100 km/h) | 3.3 sec |
| Top Speed | 250 km/h |
| Total Power / Torque | 345 kW (469 PS) / 967 Nm |
| Platform | Tesla S/X |
| EV-Dedicated Platform | Yes |
| Car Body / Segment | Liftback Sedan / F – Luxury |
| Seats / ISOFIX | 5 / Yes (2 seats) |
| Cargo Volume (Rear / Max) | 895 L / 1792 L |
| Frunk / Roof Load | Not Provided / Not Provided |
| Tow Rating (Braked / Unbraked) | Not Available |
| Heat Pump | Not Specified |
Charging Capabilities
AC Home Charging (Type 2):
- Max Power: 11 kW (standard) / 22 kW (optional)
- Charge Time (0–100%): 9h 15min (11 kW)
- Charge Speed: Up to 87 km/h (22 kW optional)
DC Fast Charging (Tesla Supercharger):
- Max DC Power: 120 kW
- Average Power (10–80%): 90 kW
- Charge Time (41–332 km): ~42 min
- Charge Speed: Up to 410 km/h
- Autocharge: Not Supported
- Plug & Charge: Not Supported
Energy Consumption Estimates
| Condition | City | Highway | Combined |
|---|---|---|---|
| Mild Weather | 585 km / 146 Wh/km | 380 km / 225 Wh/km | 470 km / 182 Wh/km |
| Cold Weather | 405 km / 211 Wh/km | 300 km / 285 Wh/km | 350 km / 244 Wh/km |
Long-Distance Suitability
- 1-Stop Range (15-min DC charge): 408 km (average)
- First Leg Distance: 302 km
- Second Leg Distance: 106 km
- Total Trip Duration (408 km): 3h 58min
- Rating: 2.5 out of 5 stars
Dimensions & Safety
- Length / Width / Height: 4970 mm / 1964 mm / 1445 mm
- Wheelbase: 2960 mm
- Weight (Unladen / GVWR): 2262 kg / 2670 kg
- Payload: 483 kg
- Turning Circle: 12.4 m
- Safety (Euro NCAP 2014):
- Adult: 82%
- Child: 77%
- Pedestrian: 66%
- Safety Assist: 71%
Charging Options in Europe (AC)
| Charger Type | Max Power | Charge Time | Rate |
|---|---|---|---|
| Wall Plug (2.3 kW) | 2.3 kW | 43h 45m | 9 km/h |
| 1-phase 16A | 3.7 kW | 27h 15m | 15 km/h |
| 1-phase 32A | 7.4 kW | 13h 45m | 30 km/h |
| 3-phase 16A | 11 kW | 9h 15m | 45 km/h |
| 3-phase 32A (Optional OBC) | 22 kW | 4h 45m | 87 km/h |
Fast Charging Performance
| Charger Type | Max Power | Avg. Power | Time (10–80%) | Rate |
|---|---|---|---|---|
| Supercharger v2 Shared | 75 kW | 60 kW † | 63 min | 270 km/h |
| Supercharger v2 | 120 kW † | 90 kW † | 42 min | 410 km/h |
† = Limited by vehicle
Bidirectional Charging Support
- Vehicle-to-Load (V2L): Not Supported
- Vehicle-to-Home (V2H): Not Supported
- Vehicle-to-Grid (V2G): Not Supported
Final Thoughts
The Tesla Model S P90D specs reflect one of the earliest powerhouses in the electric sedan market. Though no longer in production, its combination of AWD grip, 85.5 kWh battery, and high-speed DC charging set benchmarks that newer models have built upon. With Ludicrous acceleration, Tesla’s sleek liftback design, and impressive luggage space, the P90D remains a desirable option on the used EV market.
It may not support the latest charging protocols like Plug & Charge or V2X, but for its time, the Model S P90D was one of the most innovative and powerful electric cars on the road.
