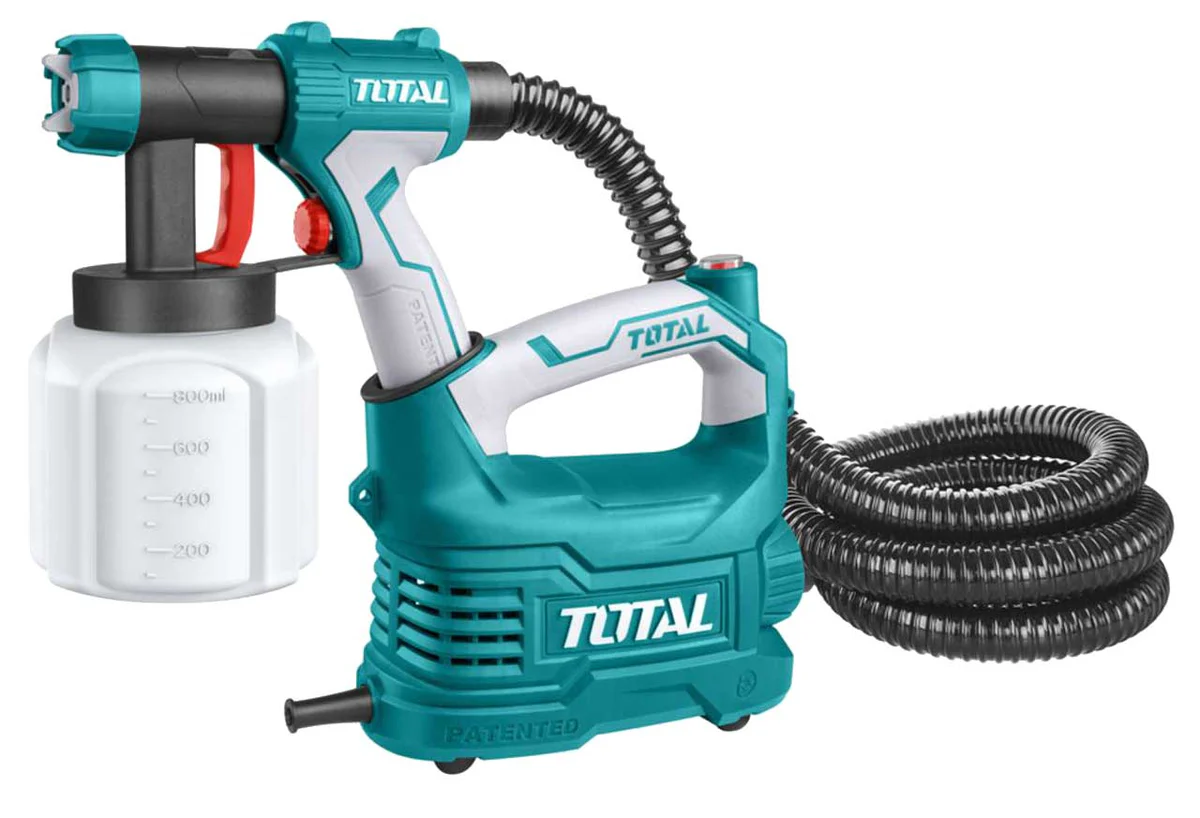

How to Clean an Automotive Paint Gun

A properly cleaned automotive paint gun ensures consistent performance and prevents contamination of future paint jobs. Follow these detailed steps to clean your paint gun effectively.

Steps to Clean an Automotive Paint Gun

1. Disconnect the Air Regulator

• Ensure the compressed air source is turned off.
• Detach the air regulator from the bottom of the paint gun.

2. Empty the Paint Cup

• Open the paint cup lid and pour unused material into designated waste containers:
  • Hardened Material: Catalyzed paint that solidifies.
  • Liquid Material: Base coats or other liquid paints.

3. Wipe Residual Paint

• Use paper towels to remove leftover paint from the cup and lid.
• Note: Paint thinner can degrade paper towels—handle with care.

4. Initial Rinse with Waste Thinner

• Pour waste thinner into the paint cup, filling it to the throat.
• Shake the gun to dissolve any residual paint.

5. Flush Thinner through the Gun

• Spray the waste thinner through the fluid nozzle into a waste container by pulling the trigger.

6. Repeat Cleaning Process

• Repeat steps 4 and 5 until the cup and gun are visibly clean.

7. Disassemble the Paint Gun

• Remove the Paint Cup: Unscrew counterclockwise.
• Take Out the Fluid Needle:
  • Unscrew the fluid adjustment knob at the rear of the gun.
  • Remove the spring and carefully pull out the fluid needle while pressing the trigger.
• Detach the Air Cap and Fluid Nozzle:
  • Unscrew the air cap and use a paint gun key to remove the fluid nozzle.

8. Secondary Cleaning with Waste Thinner

• Clean all disassembled parts thoroughly using waste thinner.

9. Final Rinse with Clean Thinner

• Rinse all components, including the gun body, cup lid, and air cap, with fresh thinner. Avoid soaking any gaskets to prevent damage.

10. Dry All Components

• Wipe parts dry with paper towels.
• Use compressed air to clean hard-to-reach areas, ensuring all liquid is removed.

11. Reassemble the Paint Gun

• Lubricate moving parts and threads to prevent sticking or seizing.
• Reattach the components in reverse order of disassembly.

12. Remove Excess Oil

• Wipe down the gun with clean paper towels to eliminate surplus oil.

13. Clean Work Area and Dispose of Waste Properly

• Ensure all waste materials are stored in appropriate containers away from heat sources.
• Dispose of paint waste at a certified recycling center or through programs like PaintCare.

Tips for Effective Cleaning

• Use Quality Materials: Opt for lint-free paper towels or clean rags to avoid leaving fibers.
• Protect Yourself: Wear gloves and goggles to handle paint thinner safely.

Warnings

• Dispose of Hazardous Materials Responsibly: Contact local recycling centers to confirm they accept paint waste.
• Avoid Contamination: Improper cleaning can clog your paint gun, requiring additional disassembly mid-operation.

By following these steps, your paint gun will stay in excellent condition, ensuring consistent, high-quality results for future projects.
