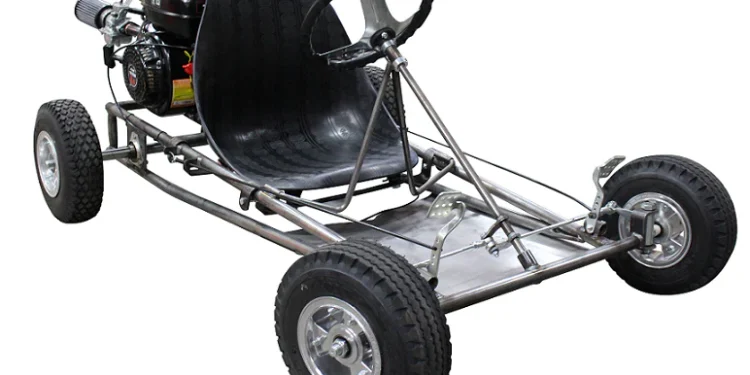

Building a Go Kart with Lawnmower Engine is an exciting DIY project that combines creativity, mechanical skill, and engineering fun. While most go-karts use horizontal shaft engines, you can modify a vertical shaft lawnmower engine to serve as the powerhouse for your custom ride. With the right tools, careful preparation, and attention to safety, you can transform an ordinary engine into a thrilling go-kart for recreation or learning.
ADVERTISEMENT
Go Kart with Lawnmower Engine Step-by-Step Guide
| Step | Instructions |
|---|---|
| 1. Drain the oil and gas | Disconnect the spark plug wire and use pliers to remove the oil drain plug. Drain oil into a pan and dispose of it safely. Then, loosen the fuel hose clamp and drain fuel from the gas tank into a bucket. |
| 2. Remove the engine | Locate and remove the bolts connecting the engine to the mower housing. Detach the drive belt from the pulley and lift the engine off carefully. Place it aside in a safe area. |
| 3. Measure and choose the right frame | Match your engine’s size (usually 5–7 HP) to a standard go-kart frame. Ensure the frame can handle both engine and gearbox weight. Larger engines (13–22 HP) may overpower the transmission. |
| 4. Plan and design your frame | Sketch or chalk a full-size outline of the kart frame on the floor. Maintain proportions between one-third and two-thirds of the wheelbase for optimal stability and control. |
| 5. Assemble the frame | Cut and weld your bumper, floor, and seat supports. Use 16-gauge sheet metal for the floor and brace both outer sides with 3/16″ gauge steel. Always wear protective gear while welding. |
| 6. Install the axle and steering column | Weld bolts to each side of the axle tubing, attach it beneath the frame, and add the steering column using ¾” tubing. Verify all movement is smooth and aligned. |
| 7. Attach the brake and throttle systems | Weld tabs for your brake and throttle pedals. Bend and position the brake rod to align with the brake band. Secure return springs and verify full range of motion. |
| 8. Mount the motor bracket | Build an adjustable motor mount that allows the engine to slide for belt tensioning. Weld it at the rear of the frame. Ensure it holds the lawnmower engine horizontally and securely. |
| 9. Install gearbox and clutch | Align the gearbox sprocket with the rear axle sprocket. Use the lawnmower’s manual belt slip clutch or install a centrifugal clutch for smoother acceleration. Maintain a 1:1 gear ratio for stability. |
| 10. Connect the throttle and wiring | Attach the throttle cable to the carburetor linkage. Double-check connections, clean oil residue, and ensure all moving parts operate without friction or obstruction. |
| 11. Add finishing touches | Bolt down your seat, install tires, and add padding. Test your go-kart in an open area to check for balance, throttle response, and braking efficiency before use. |
Safety Tips
- Always wear protective gear such as gloves, goggles, and a helmet.
- Test your Go Kart with Lawnmower Engine in a large, safe, and open area.
- Check all welds, bolts, and moving parts before each ride.
- Avoid over-revving or racing without proper safety barriers.
Conclusion
With patience and attention to detail, you can create your own Go Kart with Lawnmower Engine that delivers excitement and mechanical satisfaction. This project is not just about building a vehicle — it’s about learning engineering, improving technical skills, and enjoying the freedom of hands-on creativity.
