The Volvo EX40 Single Motor ER specs showcase the evolution of Volvo’s compact luxury EV SUV. With a 79.0 kWh usable battery and 400 km real-world range, this rear-wheel drive model combines efficiency and premium Scandinavian design. It supports 205 kW DC charging, boasts 252 PS of power, and accelerates from 0 to 100 km/h in just 7.3 seconds, offering a balanced mix of performance and sustainability.
Released in early 2025 as a successor to the MY25 variant, the Volvo EX40 Single Motor ER refines the compact EV experience with Plug & Charge support, a Volvo CMA platform, and advanced thermal and preconditioning features. Whether you’re navigating urban traffic or taking longer road trips, it promises comfort, capability, and consistent efficiency.

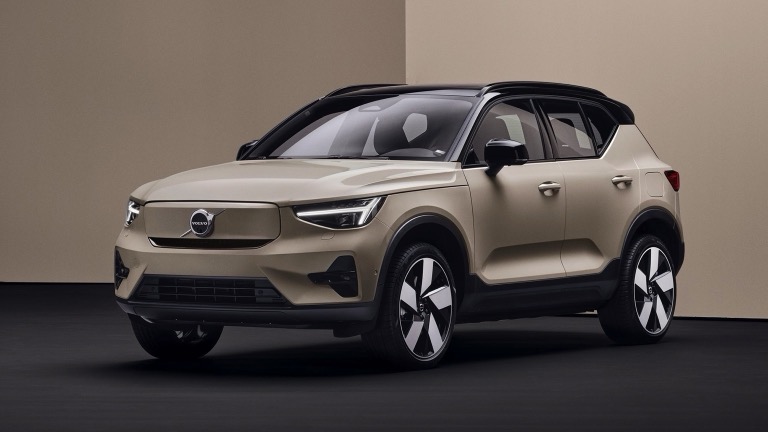

Volvo EX40 Single Motor ER (MY26) Full Specifications
| Category | Specification |
|---|---|
| Availability | Since February 2025 |
| Drive | Rear-Wheel Drive |
| Battery Capacity (Usable/Nominal) | 79.0 / 82.0 kWh |
| Battery Type | Lithium-ion (NCM) |
| Platform | Volvo CMA |
| Power Output | 185 kW (252 PS) |
| Torque | 420 Nm |
| Acceleration (0–100 km/h) | 7.3 sec |
| Top Speed | 180 km/h |
| Seats / ISOFIX | 5 / 2 seats |
| WLTP Range (TEL–TEH) | 576–520 km |
| EVDB Real-World Range | 400 km |
| Efficiency (EVDB) | 198 Wh/km |
| Turning Circle | 11.4 m |
| Roof Rails | Yes |
| Heat Pump | Yes (varies by market) |
Real-World Range and Consumption
| Condition | City | Highway | Combined |
|---|---|---|---|
| Mild Weather | 590 km / 134 Wh/km | 360 km / 219 Wh/km | 455 km / 174 Wh/km |
| Cold Weather | 405 km / 195 Wh/km | 285 km / 277 Wh/km | 340 km / 232 Wh/km |
Charging Capabilities
AC Charging (Home/Destination):
- Port Type: Type 2 (Left Rear)
- Max AC Power: 11 kW
- Time (0–100%): 8h30m
- Speed: 47 km/h
DC Fast Charging (10–80%):
- Port Type: CCS
- Max DC Power: 205 kW
- Average Power: 125 kW
- Time (40 → 320 km): 28 min
- Speed: 600 km/h
- Autocharge Supported: Yes
- Plug & Charge Supported: Yes (ISO 15118-2)
| Charging Point | Power | Time | Speed |
|---|---|---|---|
| Wall Plug (2.3 kW) | 40h30m | 10 km/h | |
| 1-phase 16A (3.7 kW) | 25h15m | 16 km/h | |
| 1-phase 32A (7.4 kW) | 12h45m | 31 km/h | |
| 3-phase 11 kW | 8h30m | 47 km/h | |
| CCS 50 kW DC | 70 min | 240 km/h | |
| CCS 205 kW DC | 28 min | 600 km/h |
Long-Distance Suitability
- Rating: 2.5 / 5
- 1-Stop Real Range: 441 km
- Charging Stop Duration: 15 minutes
- Best Scenario (Mild Weather): 499 km in ~4h15min
- Travel Time (with 1 stop): ~4h15min
Energy and Emissions
| Metric | Value |
|---|---|
| EVDB Consumption | 198 Wh/km |
| WLTP Consumption (TEL/TEH) | 166–184 Wh/km |
| CO₂ Emissions | 0 g/km |
| Fuel Equivalent (EVDB) | 2.2 l/100km |
| Fuel Equivalent (WLTP) | 1.5–2.1 l/100km |
Dimensions and Cargo
| Measurement | Value |
|---|---|
| Length / Width / Height | 4440 mm / 1863 mm / 1652 mm |
| Wheelbase | 2702 mm |
| Weight (Unladen EU / GVWR) | 2075 kg / 2520 kg |
| Max Payload | 520 kg |
| Cargo Volume (Min / Max) | 410 L / 1286 L |
| Frunk Volume | 31 L |
| Towing Capacity (Braked / Unbraked) | 1500 kg / 750 kg |
| Vertical Load Max | 100 kg |
Final Thoughts
The Volvo EX40 Single Motor ER specs highlight its status as a modern, premium EV SUV designed for everyday luxury and practical range. With 205 kW fast charging, 7.3-second acceleration, and up to 455 km real-world range, it balances Scandinavian minimalism with real-world usability. The EX40 stands as a strong contender in the compact electric SUV market, perfect for urban dwellers and eco-conscious drivers seeking elegant performance without compromise.
